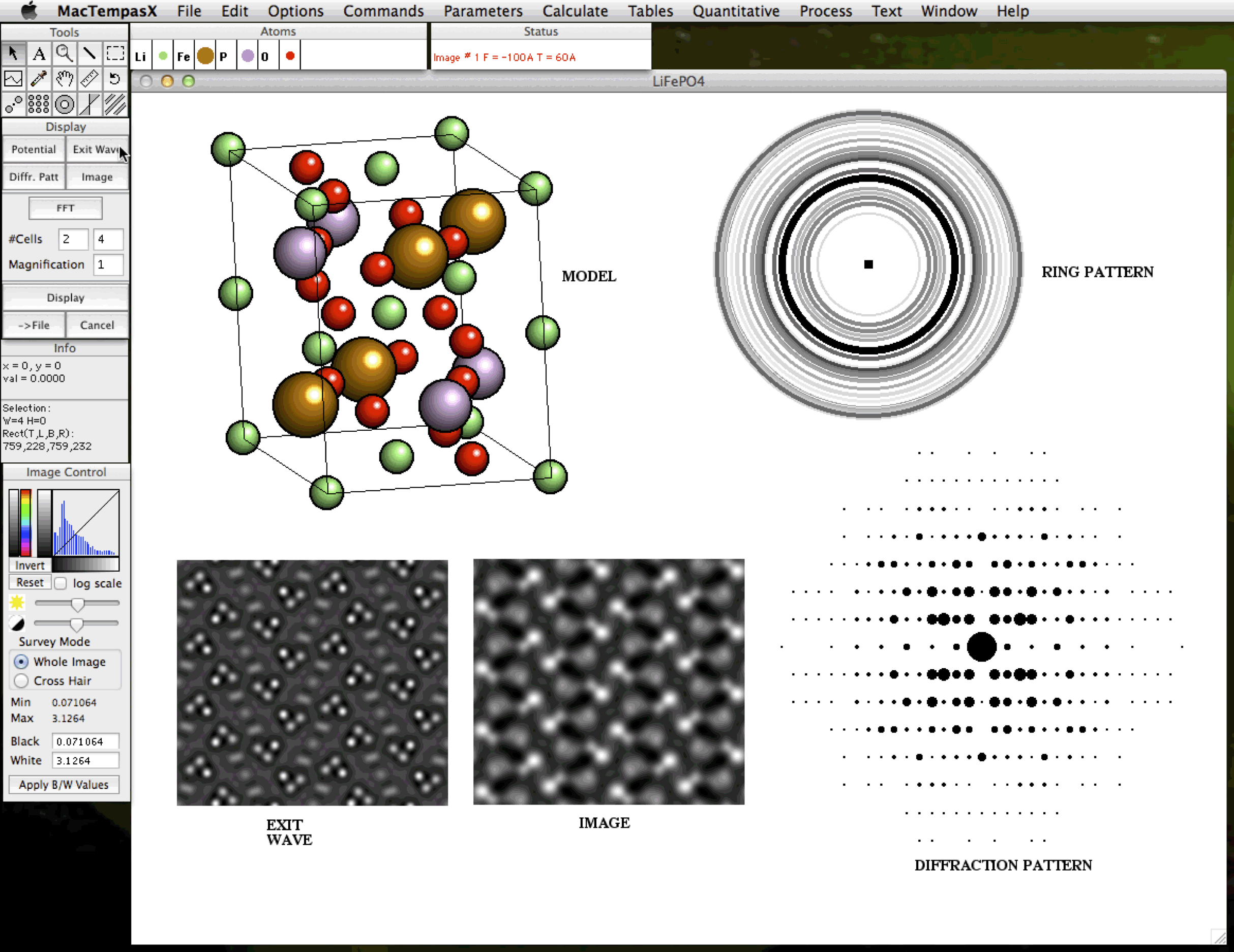

Main Display Window showing some examples
of calculated data from a given atomistic model

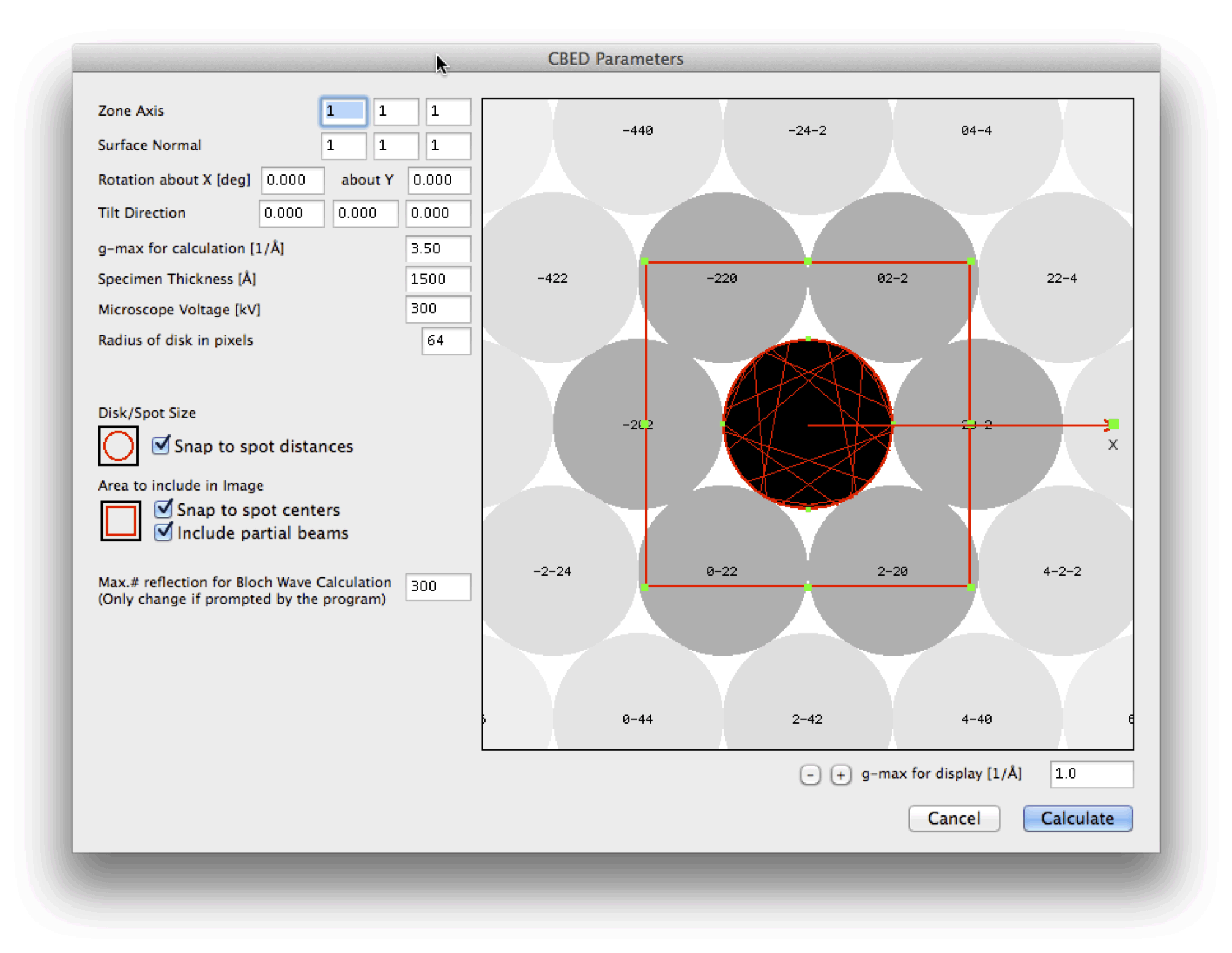

Starting point for computing a CBED Pattern

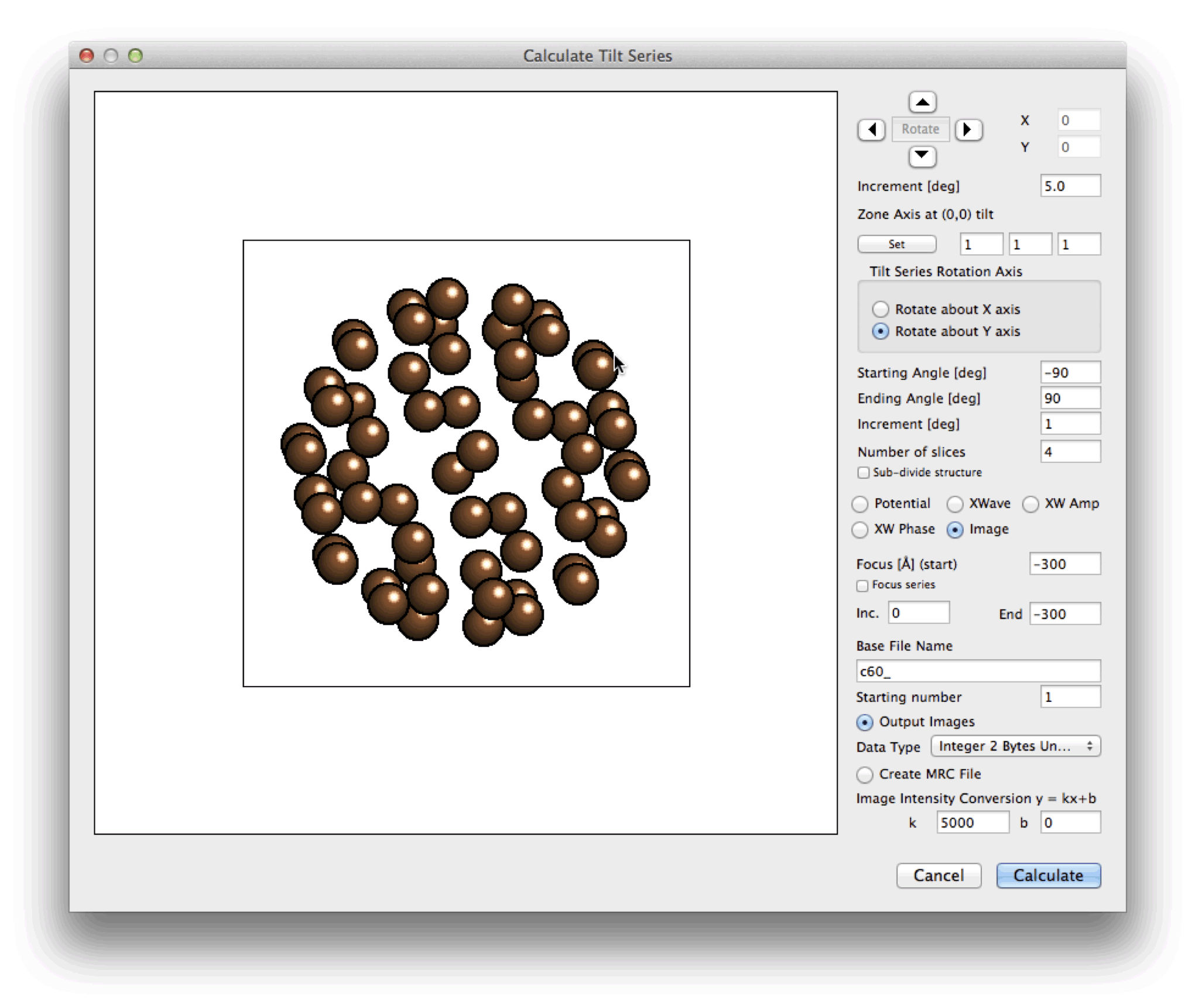

Starting point for computing
a Tomographic Tilt Series

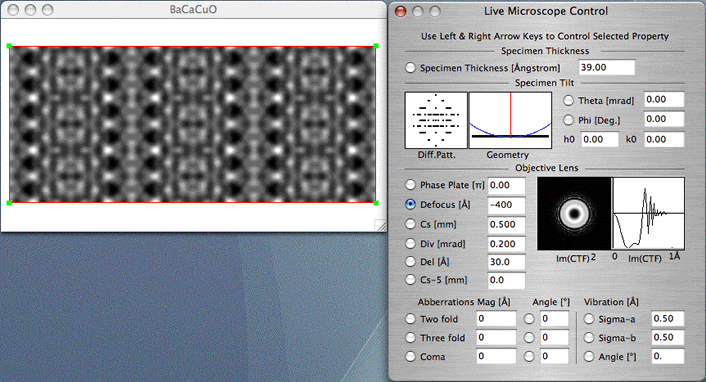

A Simulated Image with a "Live
Microscope Control"
The Image is updated "Live"
as new input parameters are given

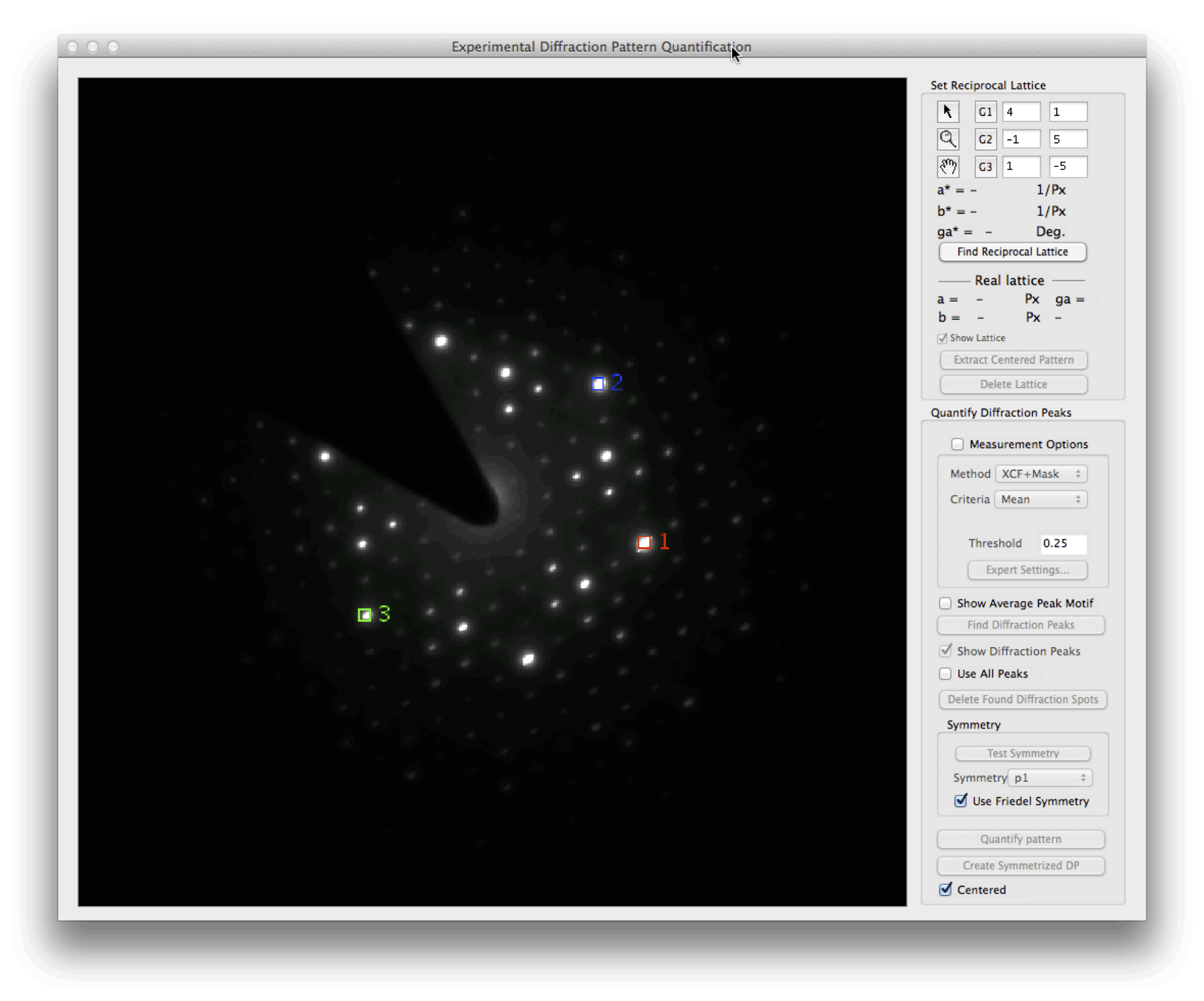

The Control Window serving as a starting point
for extracting quantitative data from experimental
diffraction patterns

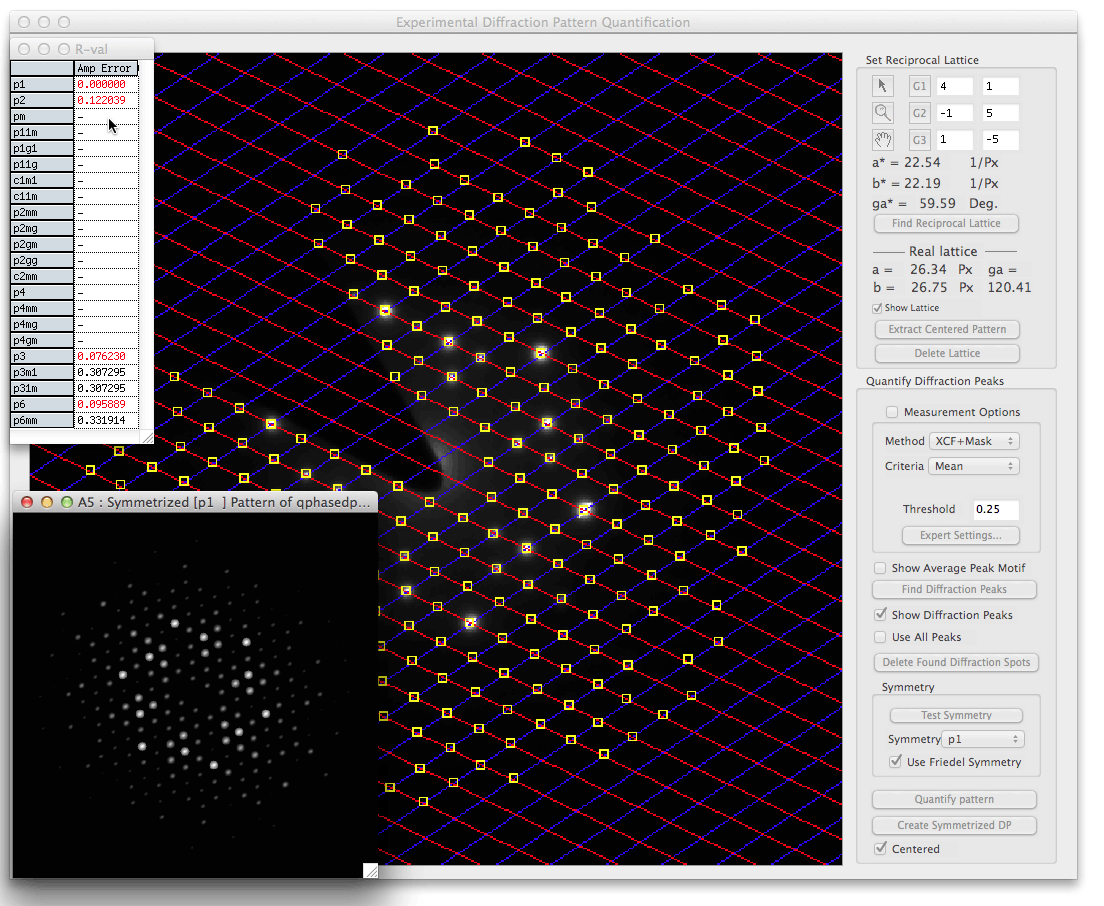

Peak information extracted from the diffraction
spots at the determined lattice

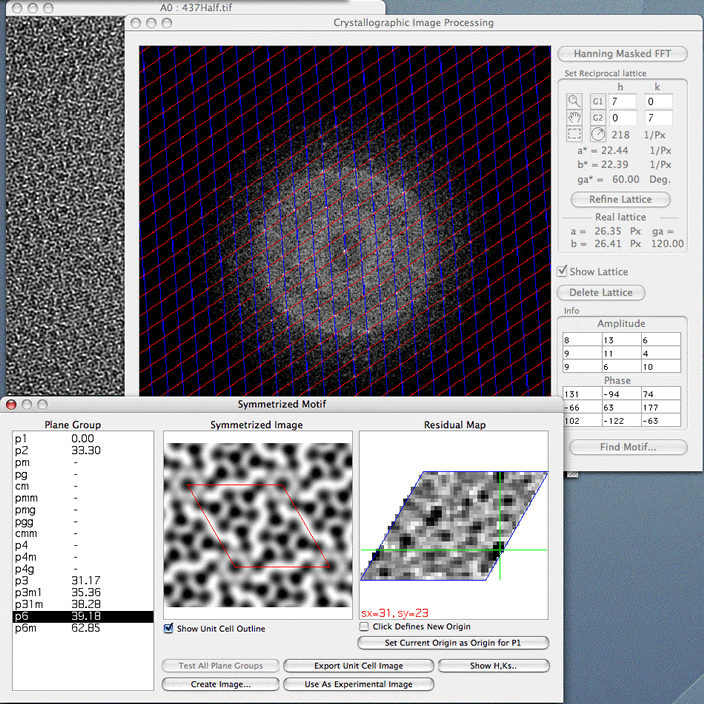

Crystallographic Image Processing using
symmetrized data from the 2D-Periodic Unit
Cell

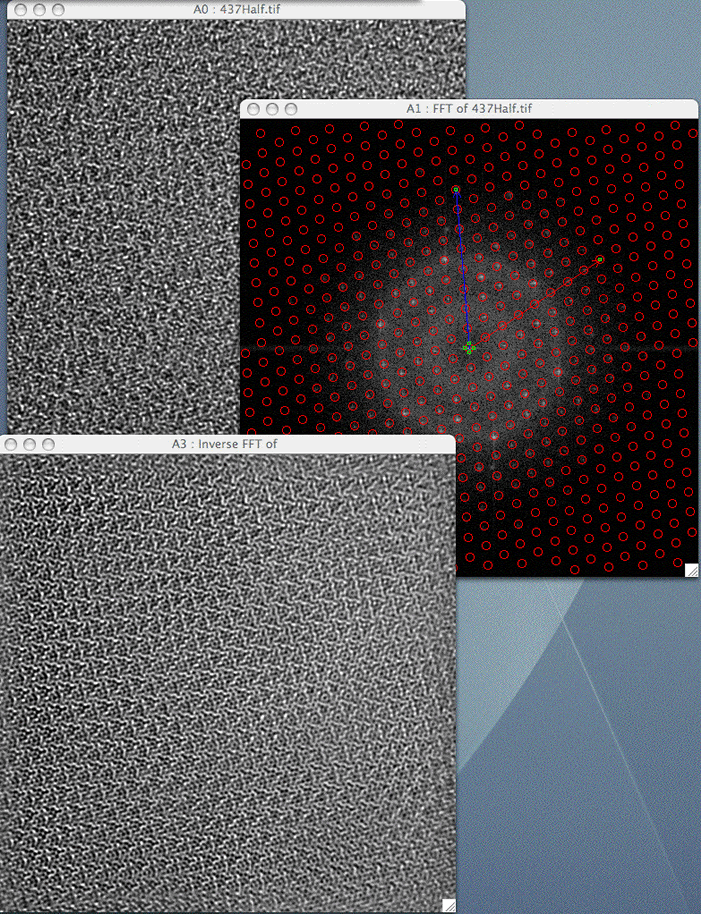

Fourier Image Processing using a periodic lattice
mask

Geometric Phase Analysis using data from information
around diffracted spots to determine lattice
deviations and strain

Geometric Phase Analysis showing a gray level
depiction of the deviations from a reference
lattice in the x-direction together with a vector
map showing the 2D deviations from the same lattice.

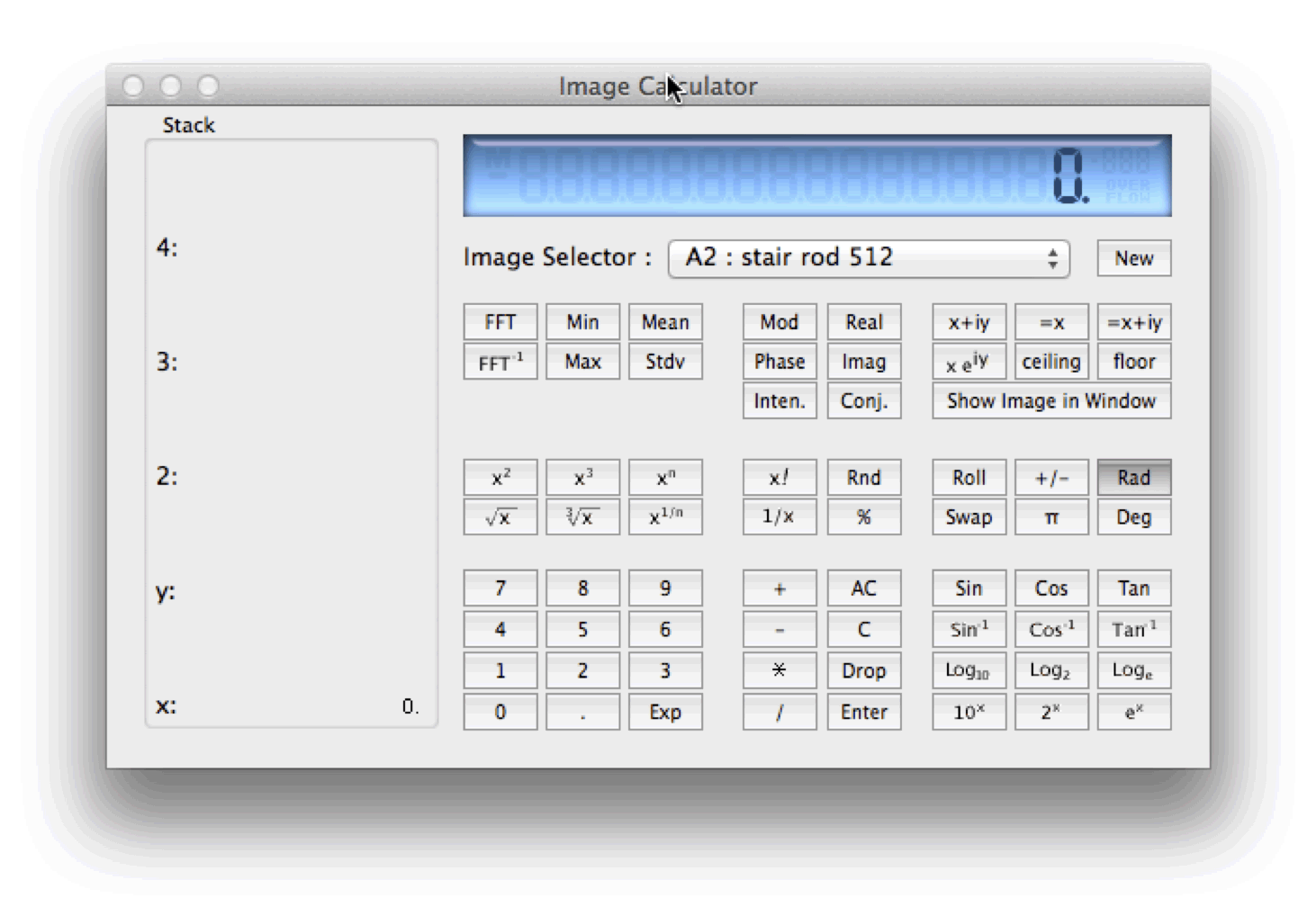

The built in Reverse Polish Notation Calculator
which operates on real and complex images as
well as real and complex numbers

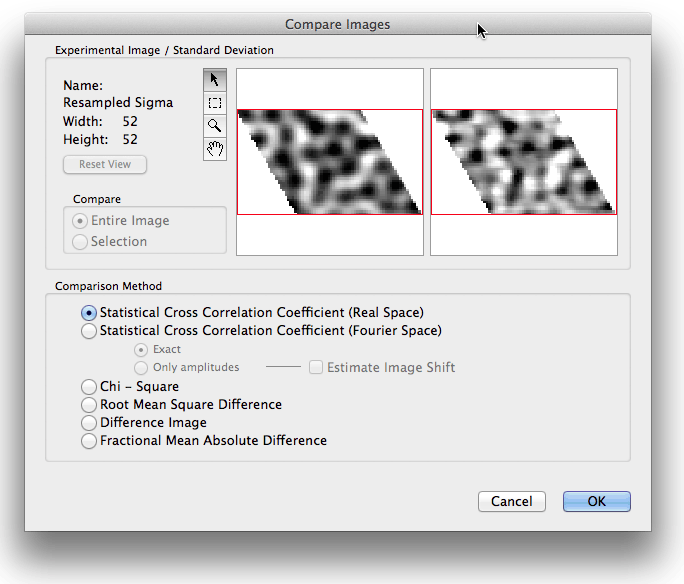

Starting point for quantitative matching between
experimental data with simulation using a number
of criteria for the quantitative fit. The quantitative
fit can also be used to refine a structure by
minimizing the discrepancy between calculation
and experiment
|
